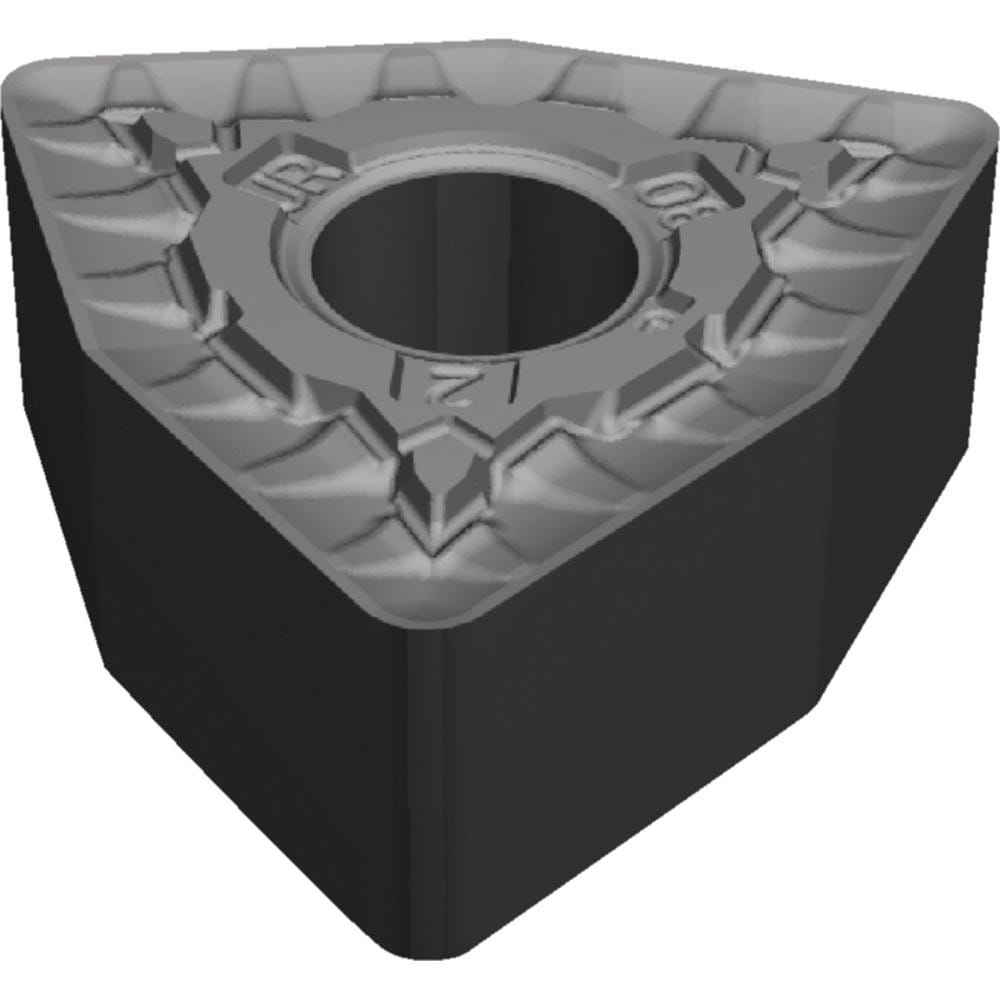

Brand: Widia / Part #: 4169442
Item #: 95623120
Brand: Widia
Model #: 4169442
Product Specifications
| Insert Style | WNMG |
| Insert Shape Code | W |
| Insert Size Code | 432 |
| Insert Shape | Trigon |
| Coating/Finish | TiOCN; TiCN; TiN; Al2O3 |
| Manufacturer Grade | WM15CT |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Maximum Depth of Cut (Decimal Inch) | 0.1710 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Clearance Code | N |
| Tolerance Code | M |
| Included Angle | 80.00 |
| Relief Angle | 0.000 |
| Series | WNMG |
| Coating Process | MTCVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.3420 |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Super-alloys & Titanium; Steel |
| Secondary Workpiece Material Code | P; S |
| Ansi Code | WNMG432UR |
| Iso Code | WNMG080408UR |
| Manufacturers Catalog Number | WNMG432UR |
| Cutting Direction | Neutral |
| Coating Classification | Multi-Layered CVD |
| Chip Breaker | UR |
| Style | WNMG |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
