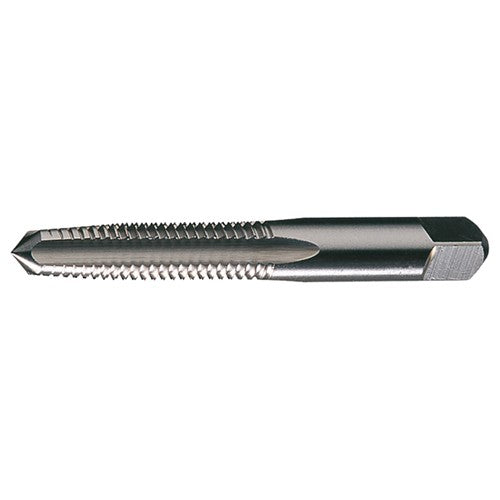

M16x2.0 Flute Carbon Steel Standard Taper Chamfer Hand Tap- Bright
Item #: CF71C69547
Brand: Cle-Force
Model #: C69547
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M16 |
| Coating | Bright |
| Thread Pitch (TP) | 2 mm |
| Flute Type | Straight |
| Thread Standard | Metric |
| End Shape | Square |
| Overall Length (OAL) | 96.84 mm |
| Style | Taper |
| Thread Cutting Part Length (THL) | 46.04 mm |
| Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 12.19 mm |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Length Group | 1.5D |
| Cutting Edge Material | Carbon Steel |
| Measurement Type | Metric |
| Tool Type | Hand Tap |
| Series/List # | 1696 |
| Chamfer | Taper |
| Thread Size | M16 × 2 |
