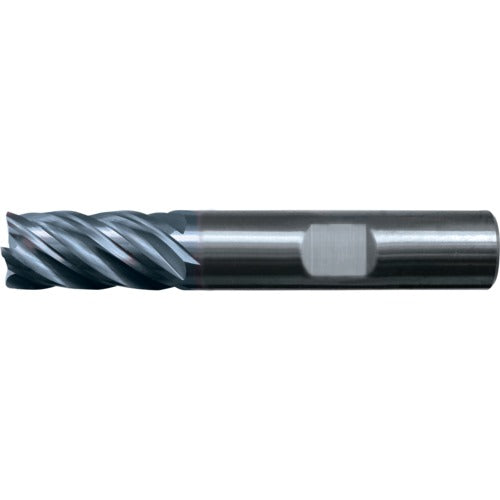

5/8″ × 5/8″ × 3/4″ × 3″ RHS / RHC Solid Carbide 5-Flute High-Performance End Mill for Ferrous Material - TiAlN
Item #: CE60C80576
Brand: Cleveland
Model #: C80576
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Tool Type | End Mill |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Length Group | Stub |
| Overall Length (OAL) | 3″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.625″ |
| Coating | AP/MAX |
| Measurement Type | Inch |
| Flute Count (NOF) | 5 |
| Series/List # | CEM-V2-5R-TA |
| Flute Helix Angle (FHA) | 38 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Single / Double End | Single End |
