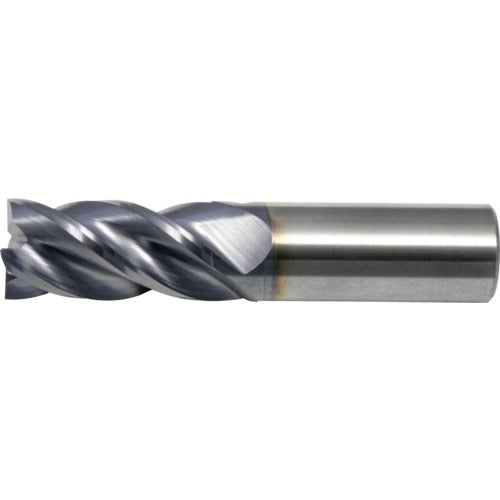

5/16″ × 5/16″ × 13/16″ × 2-1/2″ RHS / RHC Solid Carbide 4-Flute Corner Radius End Mill - TiAlN
Item #: CE60C80023
Brand: Cleveland
Model #: C80023
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| Tool Type | End Mill |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Length Group | Regular |
| Depth of Cut Maximum (APMX) | 13/16″ |
| Flute Type | Spiral |
| Overall Length (OAL) | 2-1/2″ |
| Decimal Equivalent | 0.3125″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | AP/MAX |
| Series/List # | CEM-V-4R-TA |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Single / Double End | Single End |
| End Shape | Corner Radius |
