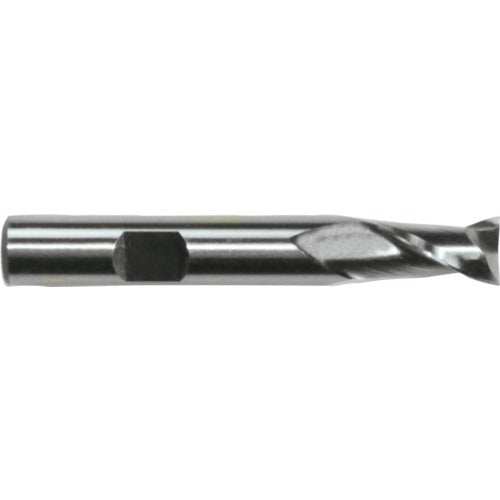

1/2X3/8X13/16X2-11/16 2F
Item #: CE60C75130
Brand: Cleveland Twist Drill
Model #: C75130
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Applicable Material | Cast Iron | Super-Alloys / Titanium |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Application | General purpose for carbon and alloy steel and cast iron. |
| Depth of Cut Maximum (APMX) | 3/16″ |
| Corner Radius (RE) | None |
| Overall Length (OAL) | 2-11/16″ |
| Tool Type | End Mill |
| Cutting Edge Material | HSS-Cobalt 8% (M42) |
| Style | Finisher |
| Coating | Bright |
| Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | HGC-2 |
| Shank Type | Plain |
| Shank Size (SS) | 3/8″ |
| End Shape | Square |
| Shank Length (LS) | 1.875″ |
| Usable Length (LU) | 13/16″ |
| Corner Radius (RE) / Chamfer Width (CHW) | None |
