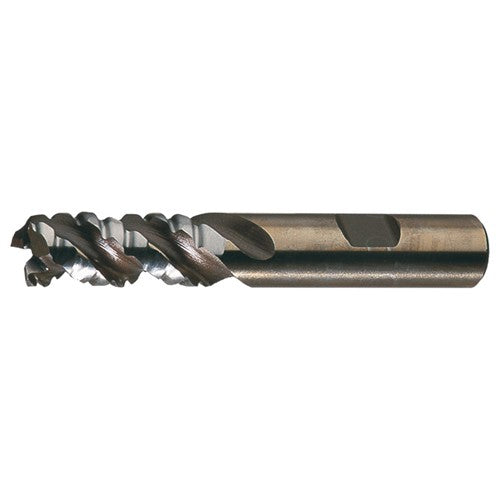

3/4″ × 3/4″ × 1-5/8″ × 3-7/8″ RHS / RHC HSS-E (PM) Powder Metal Special Profile Roughing End Mill-3F SE CC - TiCN
Item #: CE60C40033
Brand: Cleveland
Model #: C40033
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Corner Radius (RE) | 0.06″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Tool Type | End Mill |
| Depth of Cut Maximum (APMX) | 1-5/8″ |
| Flute Type | Spiral | Coarse |
| Overall Length (OAL) | 3-7/8″ |
| Decimal Equivalent | 0.75″ |
| Cutting Edge Material | HSSPM |
| Measurement Type | Inch |
| Coating | TiCN |
| Series/List # | PM-538R-TC |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon |
| Single / Double End | Single End |
| End Shape | Corner Radius |
| Trade Name | PM-Plus |
| Application | Roughing |
