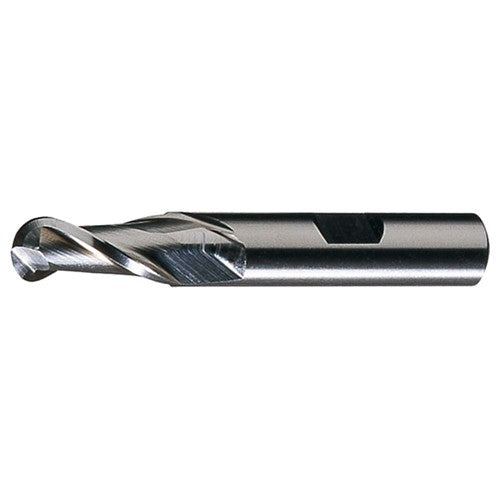

1″ Dia. × 1″ Shank × 2-1/4″ DOC × 4-3/4″ OAL, HSS TiN, Spiral , 2 Flute, CW Helix, Weldon, Ballnose End Mill
Item #: CE60C39023
Brand: Cleveland
Model #: C39023
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Application | Finishing |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Tool Type | End Mill |
| Depth of Cut Maximum (APMX) | 2-1/4″ |
| End Shape | Ball Nose |
| Overall Length (OAL) | 4-3/4″ |
| Flute Type | Spiral |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 1″ |
| Coating | TiN |
| Measurement Type | Inch |
| Flute Count (NOF) | 2 |
| Series/List # | HG-2B-TN |
| Flute Helix Angle (FHA) | CW |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon |
| Single / Double End | Single End |
