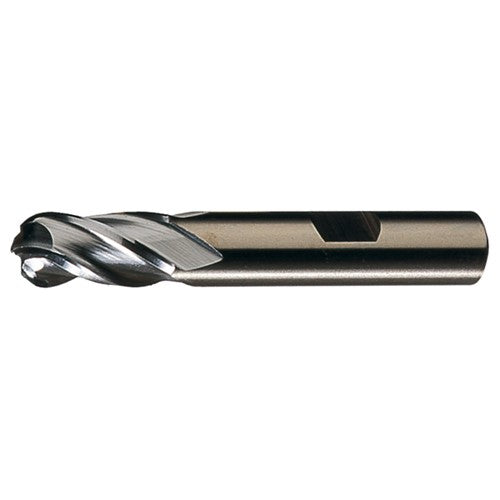

3/16″ Dia. × 3/8″ Shank × 1/2″ DOC × 2-3/8″ OAL, HSSCoPM TiCN, Spiral , 4 Flute, CW Helix, Weldon, Ballnose End Mill
Item #: CE60C32777
Brand: Cleveland
Model #: C32777
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| Application | Finishing |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Tool Type | End Mill |
| Depth of Cut Maximum (APMX) | 1/2″ |
| End Shape | Ball Nose |
| Overall Length (OAL) | 2-3/8″ |
| Flute Type | Spiral |
| Cutting Edge Material | HSS-CO 8% (M42) |
| Decimal Equivalent | 0.1875″ |
| Coating | TiCN |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
| Series/List # | HGC-4B-TC |
| Flute Helix Angle (FHA) | CW |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon |
| Single / Double End | Single End |
