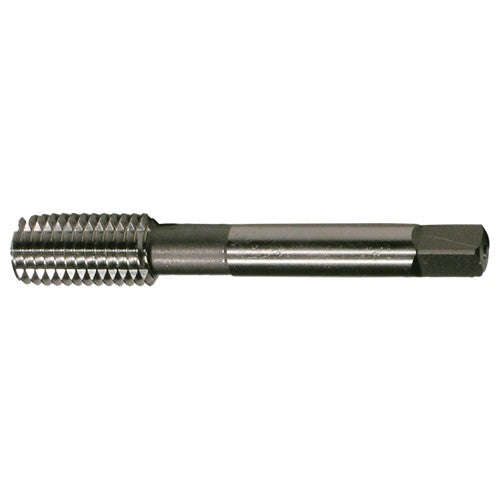

3/8-16 UNC 0 Flute H7 HSS CNC Bottoming Chamfer General Purpose Forming Tap- Bright
Item #: CD73C59318
Brand: Cleveland
Model #: C59318
| Product Specifications | |
|---|---|
| Tool Type | Machine Tap |
| Chamfer | Bottoming |
| Thread Diameter Size (TDZ) | 3/8″ |
| Length Group | 2D |
| Overall Length (OAL) | 2-15/16″ |
| Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 3/4″ |
| Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Style | Bottoming |
| Thread Tolerance Class (TCTR) | H7 | 2B | 3B |
| End Shape | Square |
| Thread Standard | NC |
| Cutting Edge Material | HSS |
| Application | General Purpose |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Non-Ferrous Metals|Stainless Steel|Steel |
| Series/List # | 1092 |
| Coating | Bright |
| Shank Type | Round w/ Drive Square |
| Threads per Inch (TPI) | 16 |
| Thread Size | 3/8″ - 16 |
