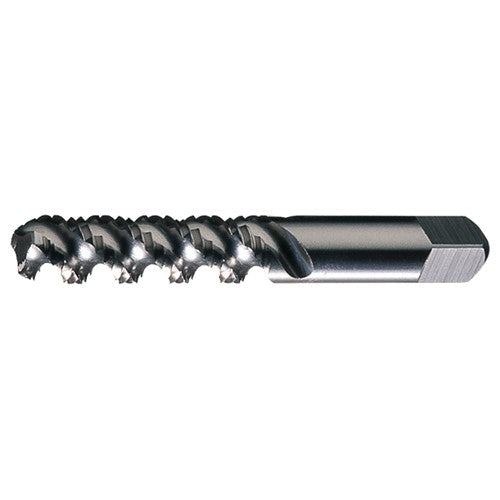

M3x0.5 2 Flute D3 HSS High Helix Bottoming Chamfer General Purpose High-Spiral Tap- TiCN
Item #: CD73C58901
Brand: Cleveland
Model #: C58901
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M3 |
| Tool Type | Machine Tap |
| Thread Pitch (TP) | 0.5 mm |
| Chamfer | Bottoming |
| Overall Length (OAL) | 1.94 |
| Coating | TiCN |
| Thread Cutting Part Length (THL) | 7.87 mm |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 3.58 mm |
| End Shape | Square |
| Flute Count (NOF) | 2 |
| Style | Bottoming |
| Flute Helix Angle (FHA) | 52 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials |
| Length Group | 2D |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | D3 | 6H |
