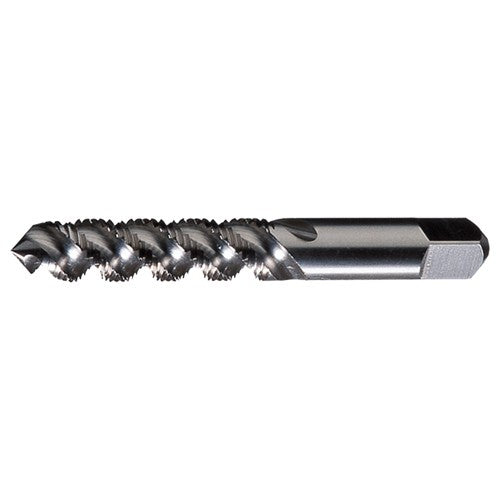

1/4-28 UNF 3 Flute H3 HSS High Helix Plug Chamfer General Purpose High-Spiral Tap- Bright
Item #: CD73C58564
Brand: Cleveland
Model #: C58564
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/4″ |
| Thread Tolerance Class (TCTR) | H3 | 2B |
| Threads per Inch (TPI) | 28 |
| Tool Type | Machine Tap |
| Thread Standard | NF |
| Chamfer | Plug |
| Overall Length (OAL) | 2-1/2″ |
| Coating | Bright |
| Thread Cutting Part Length (THL) | 0.63″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| End Shape | Square |
| Flute Count (NOF) | 3 |
| Style | Plug |
| Flute Helix Angle (FHA) | 52 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials |
| Length Group | 2D |
| Cutting Edge Material | HSS |
| Measurement Type | Inch |
