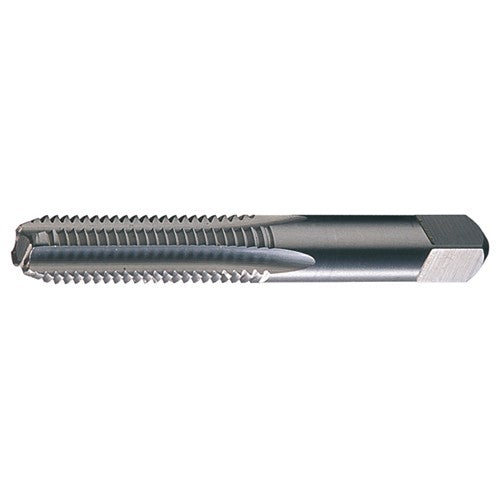

7/16-14 UNC 4 Flute H3 HSS Standard Bottoming Chamfer General Purpose Hand Tap- Bright
Item #: CD73C54654
Brand: Cleveland
Model #: C54654
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 7/16″ |
| Chamfer | Bottoming |
| Threads per Inch (TPI) | 14 |
| Coating | Bright |
| Thread Standard | NC |
| Flute Type | Straight |
| Overall Length (OAL) | 3.16″ |
| End Shape | Square |
| Thread Cutting Part Length (THL) | 0.88″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.323″ |
| Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Application | General Purpose |
| Length Group | 2D |
| Applicable Material | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Measurement Type | Inch |
| Cutting Edge Material | HSS |
| Series/List # | 1003 |
| Thread Tolerance Class (TCTR) | H3 | 2B |
| Thread Size | 7/16″ - 14 |
| Tool Type | Hand Tap |
