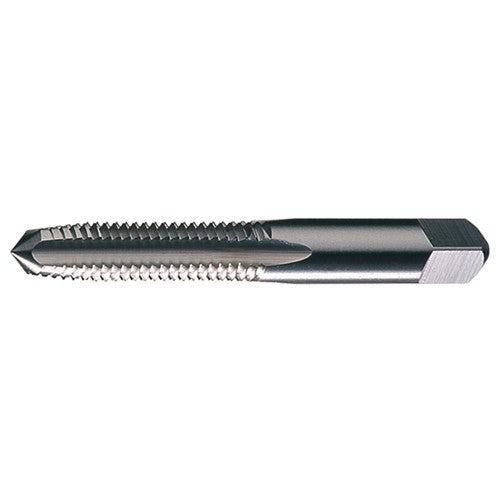

3/8-16 UNC 3 Flute H3 HSS Standard Plug Chamfer General Purpose Hand Tap- Bright
Item #: CD73C54585
Brand: Cleveland
Model #: C54585
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 3/8″ |
| Chamfer | Plug |
| Threads per Inch (TPI) | 16 |
| Coating | Bright |
| Thread Standard | NC |
| Flute Type | Straight |
| Overall Length (OAL) | 2.94″ |
| End Shape | Square |
| Thread Cutting Part Length (THL) | 3/4″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Application | General Purpose |
| Length Group | 1.5D |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Measurement Type | Inch |
| Cutting Edge Material | HSS |
| Series/List # | 1002 |
| Thread Tolerance Class (TCTR) | H3 | 2B |
| Thread Size | 3/8″ - 16 |
| Tool Type | Hand Tap |
