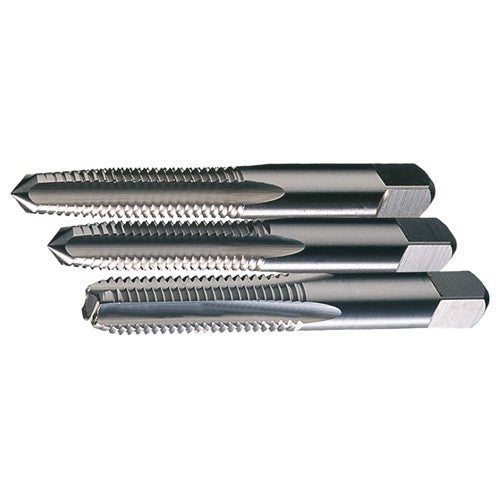

M3x0.5 3 Flute D3 HSS Standard Taper, Plug, and Bottoming Hand Tap Set- Bright
Item #: CD73C54167
Brand: Cleveland
Model #: C54167
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M3 |
| Overall Length (OAL) | 1.94 |
| Pitch in mm | 0.5 mm |
| Connection Diameter Machine Side (DCONMS) | 3.58 mm |
| Flute Type | Straight |
| Flute Count (NOF) | 3 |
| Thread Tolerance Class (TCTR) | D3 |
| Cutting Edge Material | HSS |
| Style | Taper|Plug|Bottoming |
| Quantity | 3 |
| Tool Type | Hand Tap |
| Measurement Type | Metric |
| Shank Type | Round w/ Drive Square |
| Series/List # | 1004 |
| Flute Length | 15.9 mm |
| Thread Cutting Part Length (THL) | 7.87 mm |
| Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 0.5 mm |
| Coating | Bright |
| Thread Size | M3 × 0.5 |
