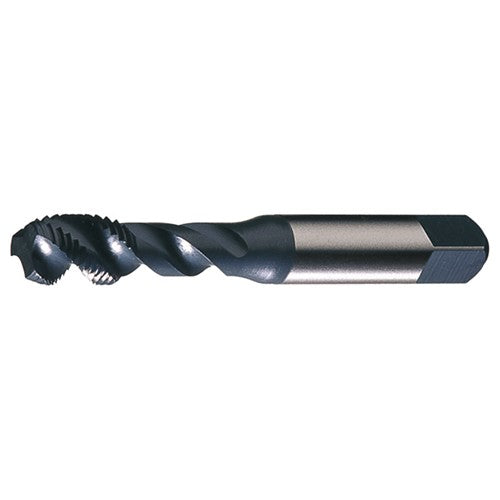

5/16-18 UNC 3 Flute H5 HSS (M4) CNC For Soft Metals Spiral Flute for Steel and Stainless Steel- Steam Oxide
Item #: CD73C27922
Brand: Cleveland
Model #: C27922
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/16″ |
| Thread Tolerance Class (TCTR) | H5 | 2B | 3B |
| Threads per Inch (TPI) | 18 |
| Tool Type | Machine Tap |
| Thread Standard | NC |
| Chamfer | Semi-Bottoming |
| Overall Length (OAL) | 2-23/32″ |
| Coating | Steam Oxide |
| Thread Cutting Part Length (THL) | 11/16″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| End Shape | Square |
| Flute Count (NOF) | 3 |
| Style | Semi-Bottoming |
| Flute Helix Angle (FHA) | 42 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel |
| Length Group | 2.5D |
| Cutting Edge Material | HSS-E |
| Measurement Type | Inch |
