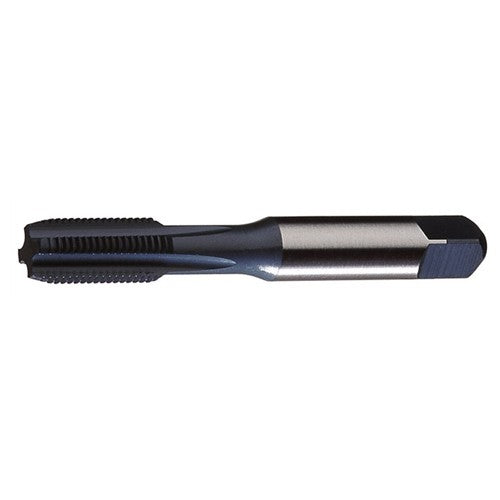

1/2-13 UNC 4 Flute H3 HSS (M4) CNC For Cast Iron & Harder Materials Straight Flute Tap- Steam Oxide over Nitride
Item #: CD73C27646
Brand: Cleveland
Model #: C27646
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/2″ |
| Chamfer | Semi-Bottoming |
| Threads per Inch (TPI) | 13 |
| Coating | Steam Oxide Over Nitride |
| Thread Standard | NC |
| Flute Type | Straight |
| Overall Length (OAL) | 3-3/8″ |
| End Shape | Square |
| Thread Cutting Part Length (THL) | 15/16″ |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Application | High Performance |
| Length Group | 2D |
| Applicable Material | Cast Iron | Hard Materials |
| Measurement Type | Inch |
| Cutting Edge Material | HSS-E |
| Series/List # | CI1000 |
| Thread Tolerance Class (TCTR) | H3 | 2B |
| Thread Size | 1/2″ - 13 |
| Tool Type | Machine Tap |
