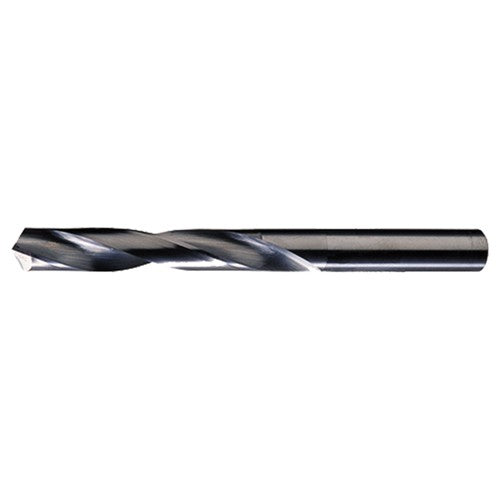

11/64″ Dia. × 0.172″ Shank × 1-5/8″ Flute Length × 2-3/4″ OAL, 118°, Bright, 2xD Flute, Round Solid Carbide Drill
Item #: CD70C47602
Brand: Cleveland
Model #: C47602
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 11/64″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 11/64″ |
| Tool Type | Jobber Drill |
| Decimal Equivalent | 0.1719″ |
| Flute Type | Spiral |
| Coating | Bright |
| Point Shape | 4 Facet |
| Connection Diameter Machine Side (DCONMS) | 11/64″ |
| Measurement Type | Inch |
| Point Angle (SIG) | 118 Degrees |
| Series/List # | 1727 |
| Flute Helix Angle (FHA) | CW |
| Length Chip Flute (LCF) | 1-5/8″ |
| Shank Length (LS) | 1-1/8″ |
| Overall Length (OAL) | 2-3/4″ |
| Shank Type | Round |
| Flute Count (NOF) | 2 |
| Shape | Jobber Drill |
| Cutting Direction (HAND) | Right Hand |
