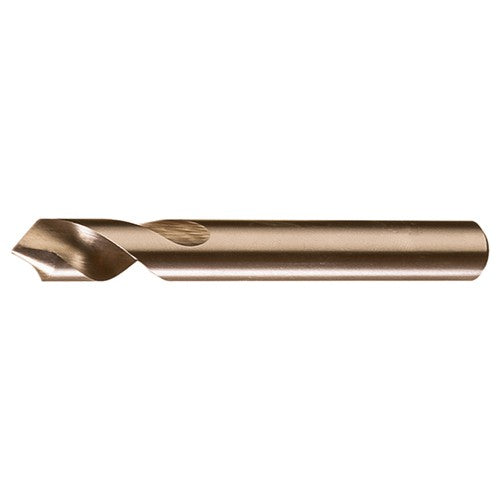

3/8″ × 3-1/8″ OAL 120 Degree HSSCoPM Radial NC Spotting Drills Gold-Black Oxide
Item #: CD70C26175
Brand: Cleveland
Model #: C26175
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3/8″ |
| Cutting Edge Material | HSSCo |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/8″ |
| Size | 3/8″ |
| Decimal Equivalent | 0.375″ |
| Point Shape | Radial |
| Point Angle (SIG) | 120 Degrees |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | CW |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 |
| Tool Type | Spotting Drill |
| Overall Length (OAL) | 3-1/8″ |
| Shank Length (LS) | 2″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Series/List # | 2636 |
| Shank Type | Round |
| Length Chip Flute (LCF) | 1-1/8″ |
| Coating | Straw |
