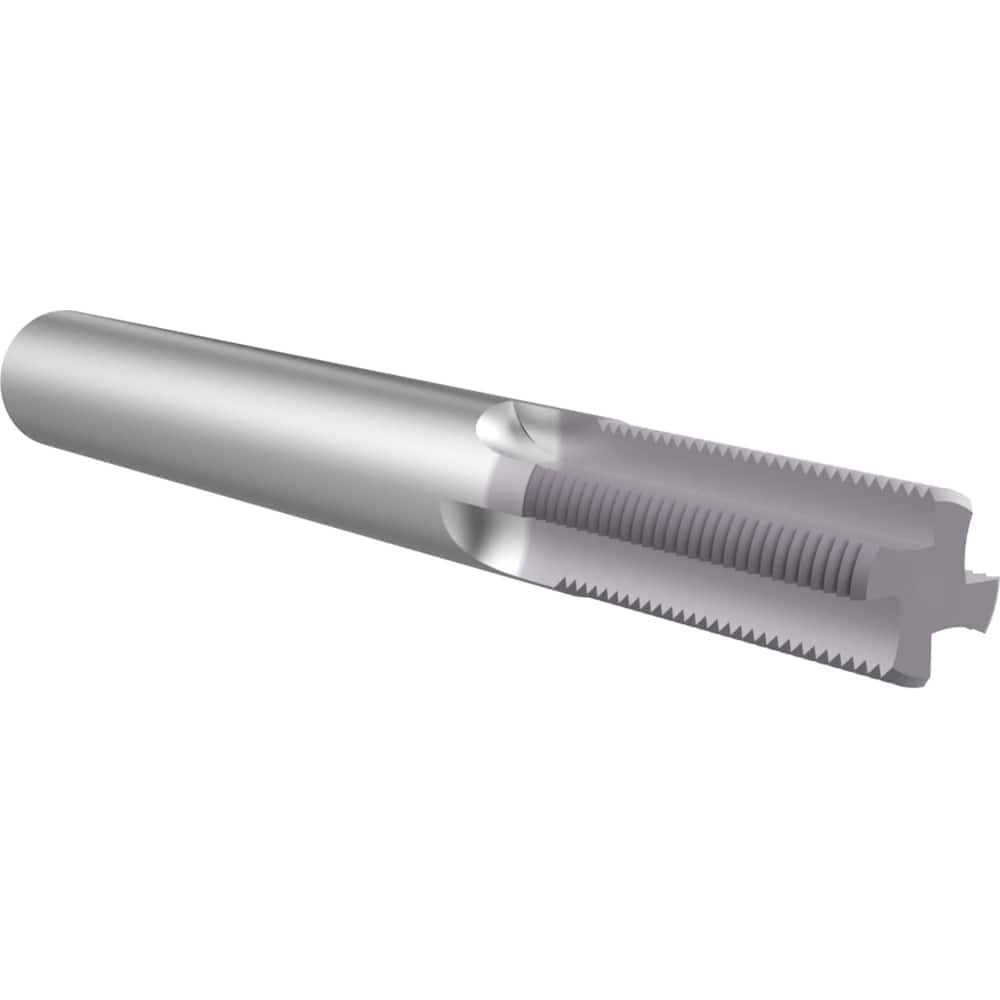

Allied Machine and Engineering - Helical Flute Thread Mills Pitch (mm): 0.40 Material: Carbide
Item #: 18421966
Brand: Allied Machine and Engineering
Model #: TM20040
Features and Benefits
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat resistant and used for high speed applications on stainless steels, nickel and titanium alloys.
Product Specifications
Helical Flute Thread Mills; Pitch (mm): 0.40 ; Material: Carbide ; Thread Size (mm): M2 ; Thread Type: Internal/External ; Shank Diameter (Decimal Inch): 0.1250 ; Number of Flutes: 3
| Pitch (mm) | 0.40 |
| Material | Carbide |
| Thread Size (mm) | M2 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.0590 |
| Length of Cut (Decimal Inch) | 0.1260 |
| Finish/Coating | TiAlN |
| Through Coolant | NonThrough Coolant |
| Overall Length (Inch) | 2 |
| Thread Standard | ISO |
