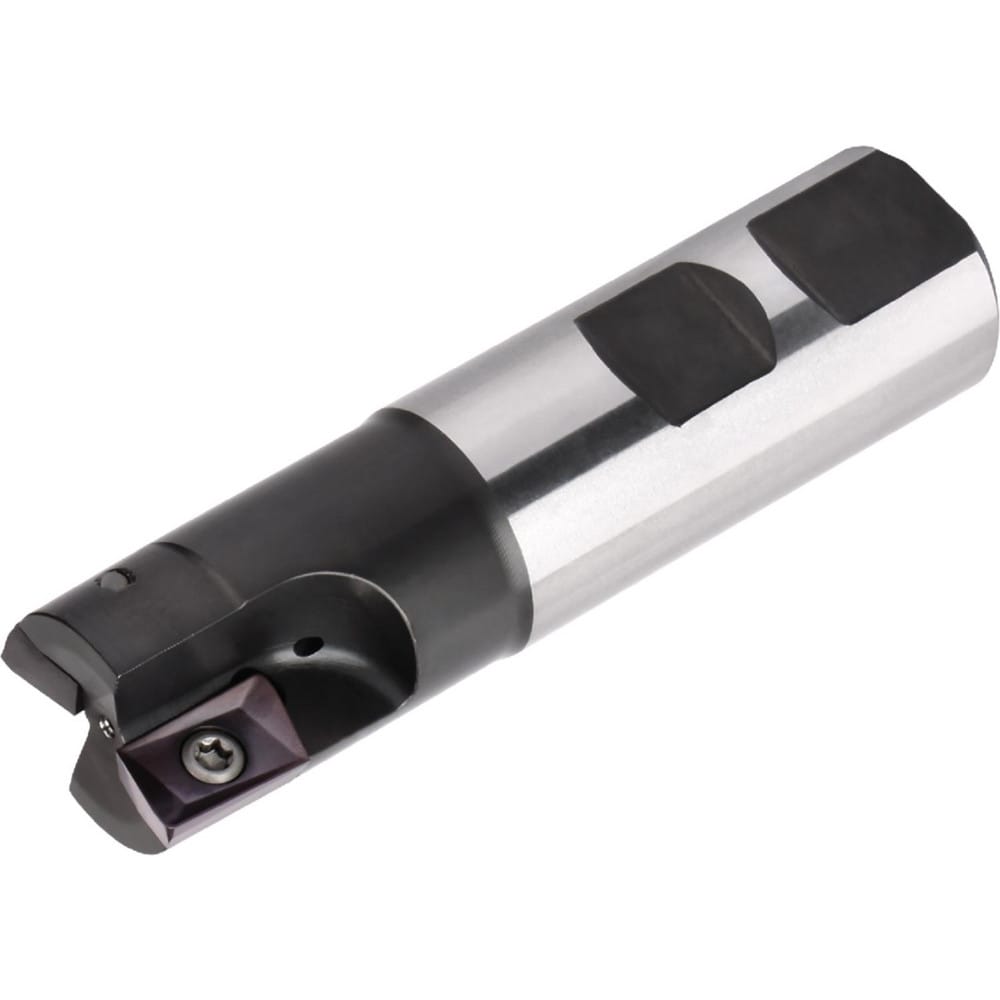

Brand: Widia / Part #: 2646688
Item #: 98796972
Brand: Widia
Model #: 2646688
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Minimum Cutting Diameter (Inch) | 1 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 0.5500 |
| Cutter Style | M680 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Maximum Ramping Angle | 0 ? |
| Insert Holding Method | Screw |
| Shank Taper Size | None |
| Overall Length (Decimal Inch) | 4.0000 |
| Tool Material | Steel |
| Series | M680 |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.2800 |
| Head Length (Decimal Inch) | 1.7200 |
| Maximum RPM | 17500.000 |
| Tool Application | Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Complete Insert Compatibility | XP..1604.. |
| Insert Compatibility | XP..1604.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| ISO Number | M680D100Z02W100XP16 |
| Manufacturers Catalog Number | M680D100Z02W100XP16 |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 1.7200 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
