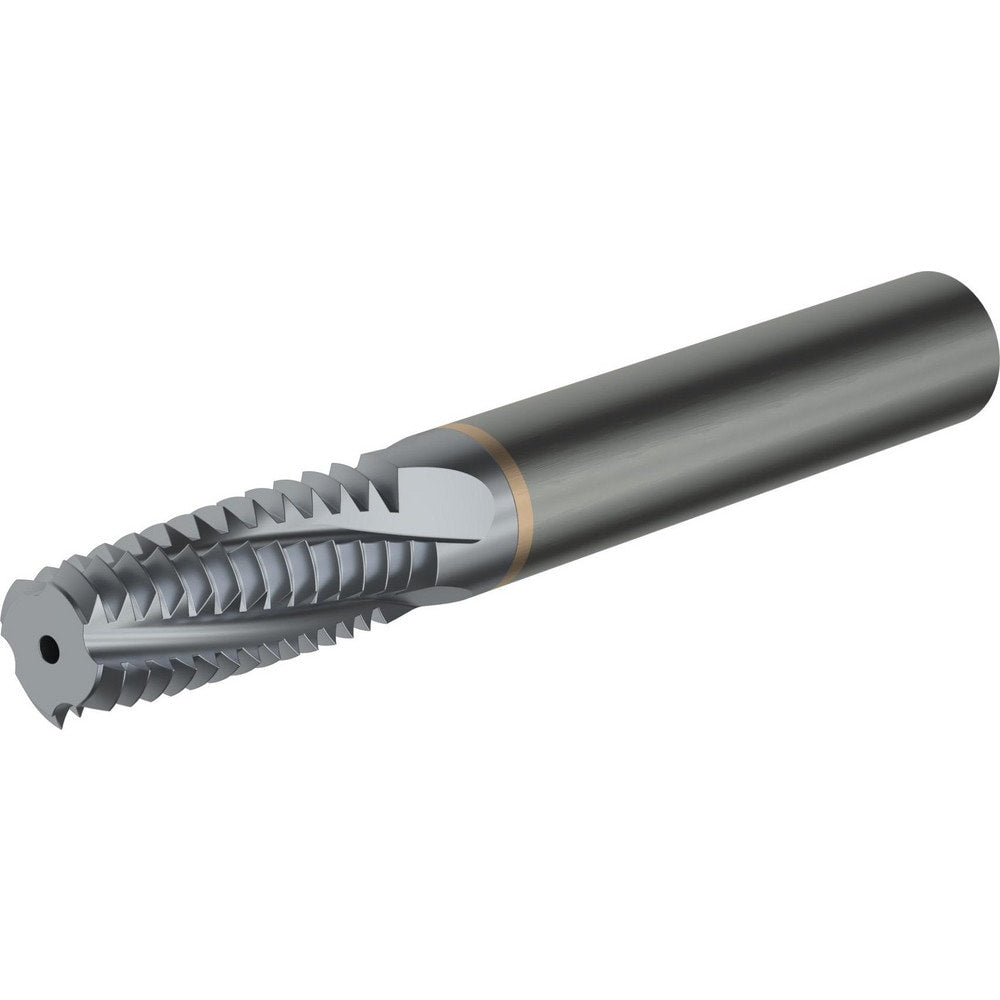

Brand: Vargus / Part #: 049-00001
Item #: 88215835
Brand: Vargus
Model #: 049-00001
Product Specifications
| Material | Carbide |
| Thread Size (mm) | M3x0.5 |
| Thread Depth (Decimal Inch) | 0.244 |
| Thread Type | Internal |
| Shank Diameter (mm) | 3.0000 |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Cutting Diameter (mm) | 2.40 |
| Cutting Diameter (Decimal Inch) | 0.0945 |
| Length of Cut (mm) | 6.2000 |
| Minimum Nominal Diameter (Decimal Inch) | 0.1181 |
| Minimum Nominal Diameter (mm) | M3 |
| Shank Length (Decimal Inch) | 1.4940 |
| Shank Length (mm) | 17.000 |
| Overall Length (mm) | 27.0000 |
| Overall Length (Decimal Inch) | 1.0630 |
| Number Of Flutes | 4 |
| Coating/Finish | TiCN |
| Coolant Through | Yes |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2441 |
| Thread Length (mm) | 6.20 |
| Thread Length (Decimal Inch) | 4.0960 |
