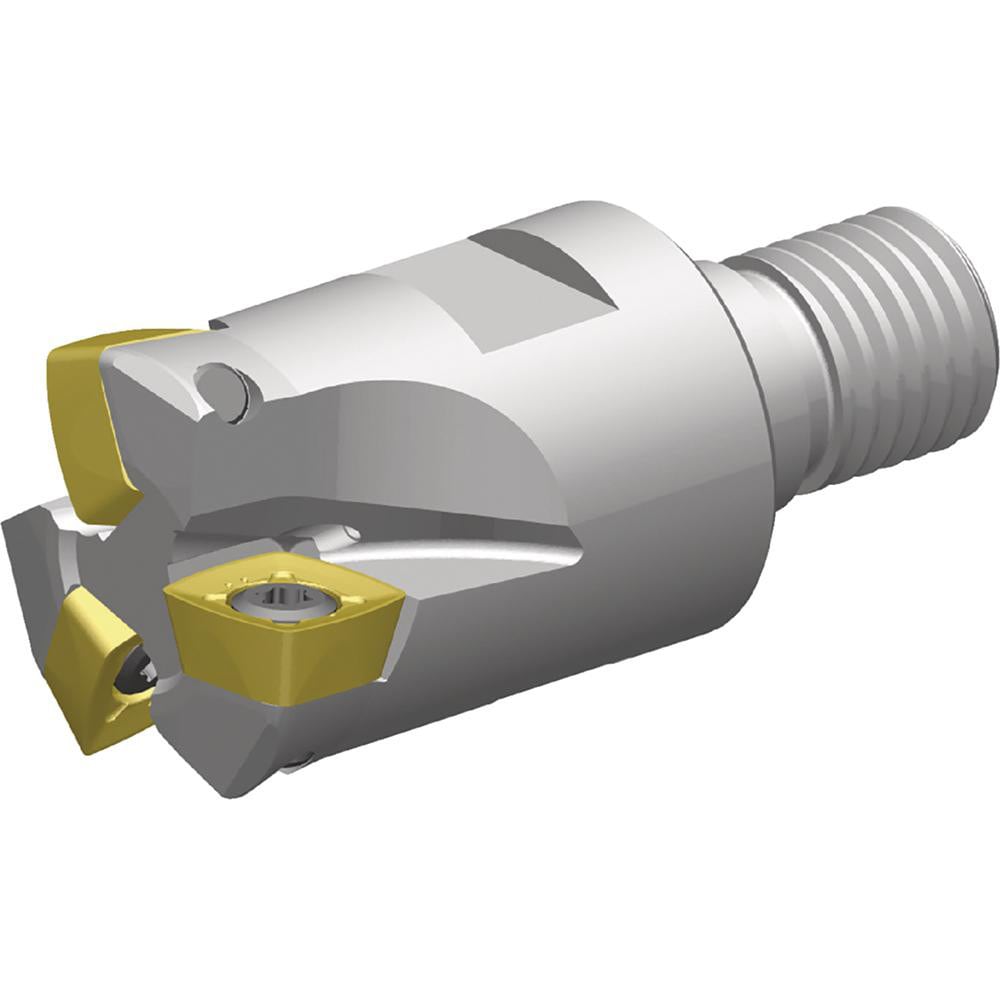

Brand: Widia / Part #: 6733676
Item #: 83172619
Brand: Widia
Model #: 6733676
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.5365 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.1057 |
| Toolholder Style | VXF |
| Shank Type | Modular Connection |
| Shank Diameter (Decimal Inch) | 1.1417 |
| Shank Diameter (mm) | 1.14 |
| Maximum Ramping Angle | 2.60 |
| Compatible Insert Style | XDPT |
| Compatible Insert Size Code | 1205.. |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 2.6600 |
| Overall Length (mm) | 2.66 |
| Series | VXF-12 |
| Flute Type | Straight |
| Maximum RPM | 31500 |
| Modular Connection Size | M16 |
| Head Length (Decimal Inch) | 1.7000 |
| Functional Length (Decimal Inch) | 2.6645 |
| Projection (Decimal Inch) | 2.6645 |
| Tool Application | Plunging; Milling; Ramping |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
