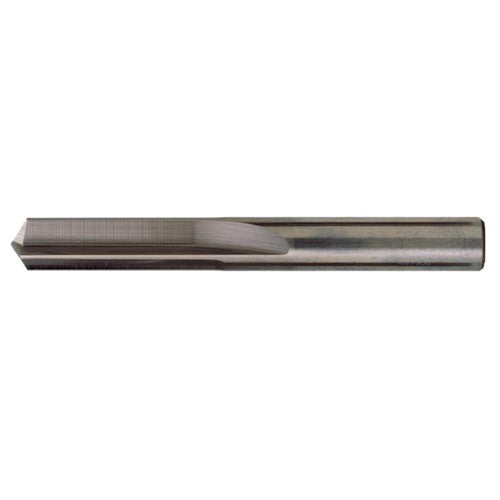

7/64″ Dia. × 0.109″ Shank × 13/16″ Flute Length × 1-13/16″ OAL, Stub, 140°, Bright, 2xD Flute, Round Solid Carbide Drill
Item #: BA11B54163
Brand: Bassett
Model #: B54163
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 7/64″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 7/64″ |
| Tool Type | Drill |
| Decimal Equivalent | 0.1094″ |
| Flute Type | Straight |
| Length Group | Stub |
| Point Shape | Standard |
| Coating | Bright |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 7/64″ |
| Series/List # | DM |
| Point Angle (SIG) | 140 Degrees |
| Length Chip Flute (LCF) | 13/16″ |
| Shank Length (LS) | 1″ |
| Overall Length (OAL) | 1-13/16″ |
| Shank Type | Round |
| Flute Count (NOF) | 2 |
| Shape | Solid Carbide |
| Cutting Direction (HAND) | Right Hand |
