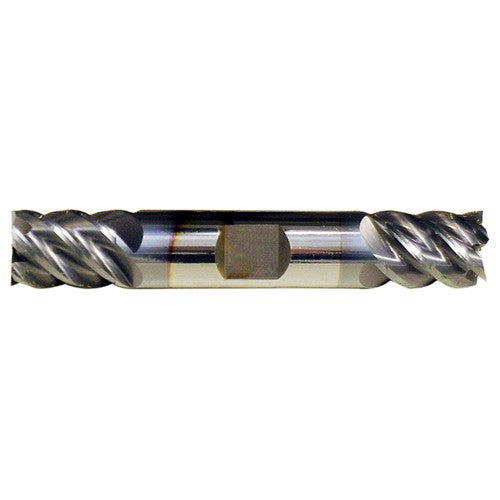

1/8″ × 1/8″ × 1/4″ × 1-1/2″ RHS / RHC Solid Carbide 5-Flute High-Performance End Mill - TiAlN
Item #: BA10B66100
Brand: Bassett
Model #: B66100
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/8″ |
| Applicable Material | Stainless Steel |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Tool Type | End Mill |
| Depth of Cut Maximum (APMX) | 1/4″ |
| Length Group | Regular |
| Overall Length (OAL) | 1-1/2″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.125″ |
| Coating | AlTiN |
| Measurement Type | Inch |
| Flute Count (NOF) | 5 |
| Series/List # | HPDEM-5-TA |
| Flute Helix Angle (FHA) | CW |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Single / Double End | Double End |
| End Shape | Square |
| Center Cutting | Yes |
