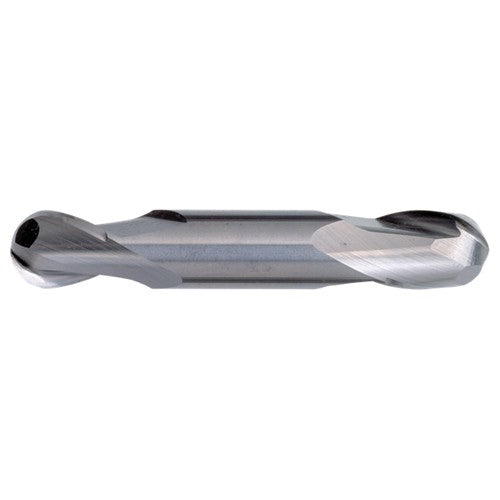

3/16″ Dia. × 3/8″ Shank × 1/2″ DOC × 3″ OAL, Carbide Bright, Spiral , 2 Flute, CW Helix, Weldon, Ballnose End Mill
Item #: BA10B52485
Brand: Bassett
Model #: B52485
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| Length Group | Regular |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| End Shape | Ball Nose |
| Depth of Cut Maximum (APMX) | 1/2″ |
| Flute Type | Spiral |
| Overall Length (OAL) | 3″ |
| Decimal Equivalent | 0.1875″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | Bright |
| Series/List # | MDE-2B |
| Flute Count (NOF) | 2 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | CW |
| Center Cutting | Yes |
| Shank Type | Weldon |
| Single / Double End | Double End |
| Tool Type | End Mill |
