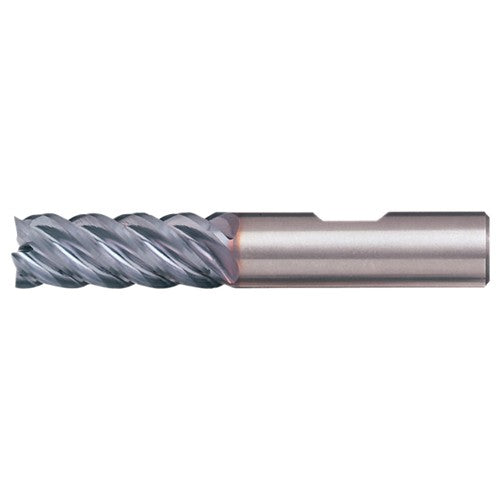

9/32″ × 5/16″ × 13/16″ × 2-1/2″ RHS / RHC Solid Carbide 5-Flute High-Performance End Mill for Steel - TiAlN
Item #: BA10B05850
Brand: Bassett
Model #: B05850
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 9/32″ |
| Applicable Material | Stainless Steel | Hard Materials |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Tool Type | End Mill |
| Depth of Cut Maximum (APMX) | 13/16″ |
| Length Group | Regular |
| Overall Length (OAL) | 2-1/2″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2812″ |
| Coating | AlTiN |
| Measurement Type | Inch |
| Flute Count (NOF) | 5 |
| Series/List # | HPEM-5-TA |
| Flute Helix Angle (FHA) | CW |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Single / Double End | Single End |
| End Shape | Square |
| Center Cutting | Yes |
