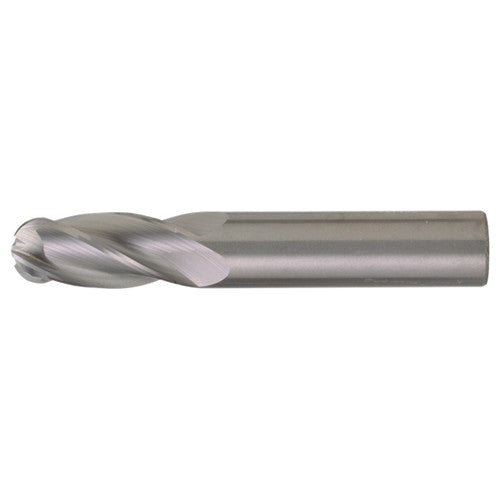

1/16″ Dia. × 1/8″ Shank × 3/16″ DOC × 1-1/2″ OAL, Carbide TiCN, Spiral , 4 Flute, CW Helix, Round, Ballnose End Mill
Item #: BA10B01901
Brand: Bassett
Model #: B01901
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/16″ |
| Length Group | Regular |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| End Shape | Ball Nose |
| Depth of Cut Maximum (APMX) | 1/4″ |
| Flute Type | Spiral |
| Overall Length (OAL) | 1-1/2″ |
| Decimal Equivalent | 0.0625″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiCN |
| Series/List # | MSE-4B-TC |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | CW |
| Center Cutting | Yes |
| Shank Type | Round |
| Single / Double End | Single End |
| Tool Type | End Mill |
