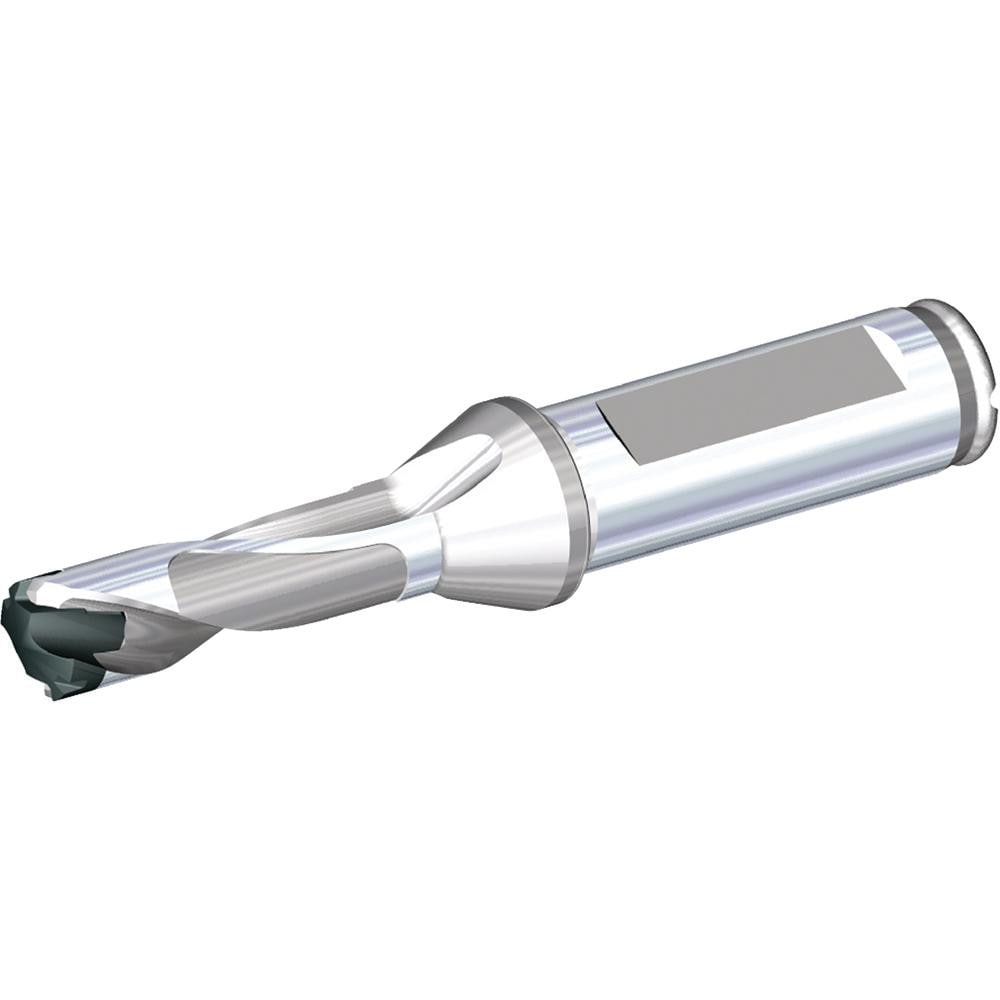

Brand: Widia / Part #: 4098939
Item #: 90214883
Brand: Widia
Model #: 4098939
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.3543 |
| Maximum Drill Diameter (Decimal Inch) | 0.3736 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.1219 |
| Shank Type | Flatted |
| Insert Style | TDM |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Seat Size | W12 |
| Tool Material | Steel |
| Compatible Insert Style | TDM |
| Compatible Insert Size Code | W12 |
| Overall Length (Decimal Inch) | 3.6467 |
| Series | TDM1 |
| Toolholder Style | TDM1 |
| Flute Length (Decimal Inch) | 1.6585 |
| Body Length (Decimal Inch) | 1.6902 |
| Shank Length (Decimal Inch) | 1.7717 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Tip Length (Decimal Inch) | 0.0654 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
