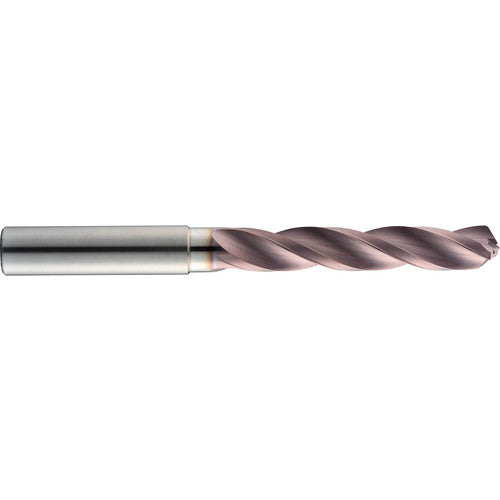

10.7 mm Dia. × 12 mm Shank × 71 mm Flute Length × 118 mm OAL, 5xD, 124°, TM, 3 Flute, Coolant Thru, Round Solid Carbide Drill
Item #: AX6065237
Brand: KYOCERA SGS Precision Tools
Model #: 65237
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 10.7 mm |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.4213″ |
| Tool Type | Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10.7 mm |
| Flute Type | Spiral |
| Length Group | 5xD |
| Measurement Type | Metric |
| Coating | TM |
| Series/List # | 141K |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Usable Length (LU) | 71 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 71 mm |
| Point Angle (SIG) | 124 Degrees |
| Overall Length (OAL) | 118 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Flute Count (NOF) | 3 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
