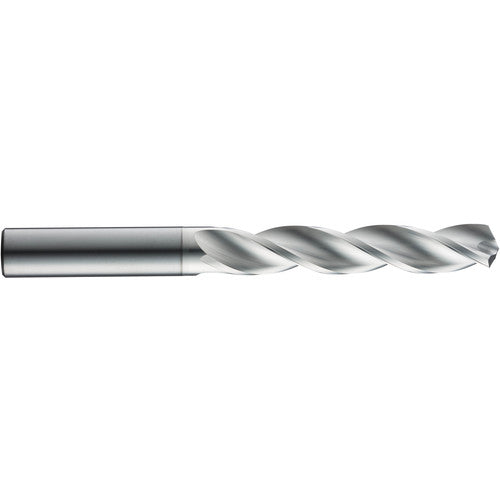

#21 Dia. × 0.2362″ Shank × 24 mm Flute Length × 66 mm OAL, 3xD, 124°, Uncoated, 3 Flute, External, Round Solid Carbide Drill
Item #: AX6054604
Brand: KYOCERA SGS Precision Tools
Model #: 54604
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #21 |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.159″ |
| Tool Type | Drill |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #21 |
| Flute Type | Spiral |
| Length Group | 3xD |
| Measurement Type | Wire Gauge |
| Coating | Uncoated |
| Series/List # | 131N |
| Connection Diameter Machine Side (DCONMS) | 0.2362″ |
| Usable Length (LU) | 17 mm |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 24 mm |
| Point Angle (SIG) | 124 Degrees |
| Overall Length (OAL) | 66 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Flute Count (NOF) | 3 |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
