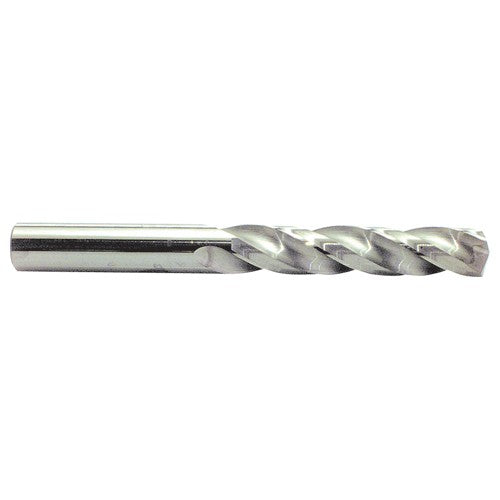

F Dia. x 0.257″ Shank × 2″ Flute Length × 3-1/4″ OAL, 5xD, 150°, Bright, 3 Flute, External, Round Solid Carbide Drill
Item #: AX6053206
Brand: KYOCERA SGS Precision Tools
Model #: 53206
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | F |
| Tool Type | Drill |
| Decimal Equivalent | 0.257″ |
| Length Below Shank | 1.366″ |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | F |
| Flute Type | Spiral |
| Length Group | 5xD |
| Point Shape | Point |
| Coating | Bright |
| Measurement Type | Letter |
| Connection Diameter Machine Side (DCONMS) | 0.257″ |
| Series/List # | 103 |
| Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 1.6094″ |
| Point Angle (SIG) | 150 Degrees |
| Length Chip Flute (LCF) | 2″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Overall Length (OAL) | 3-1/4″ |
| Shank Type | Round |
| Flute Count (NOF) | 3 |
| Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand |
