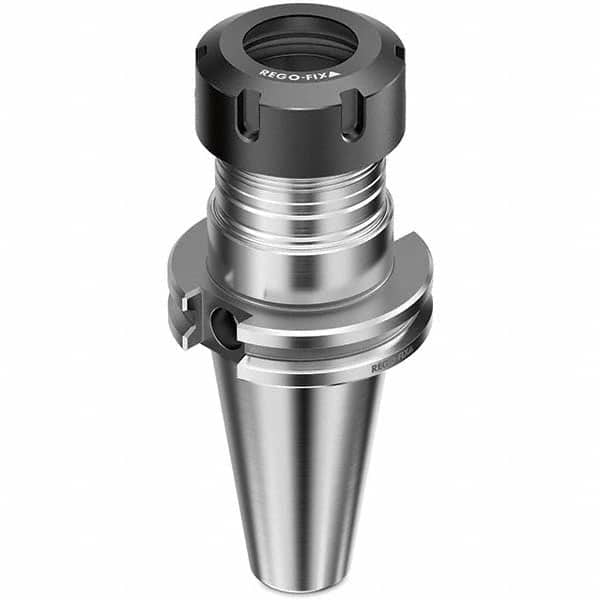

Rego-Fix - 1mm x 16mm CAT50 Taper Shank ER25 Collet Chuck
Item #: 08214223
Brand: Rego-Fix
Model #: 4350.12571
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Projection (Inch) | 6 |
| Through Coolant | Yes |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 16.00 |
| Actuator Type | Wrench |
| Type | ER Collet |
| Nose Diameter (mm) | 42.00 |
| Maximum RPM | 25000 |
| Locknut Diameter (Decimal Inch) | 1.6548 |
| Projection (Decimal Inch) | 6.0000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| TIR (mum) | 3.00 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (mm) | 42.00 |
| Additional Information | With Hi-Q Nut |
