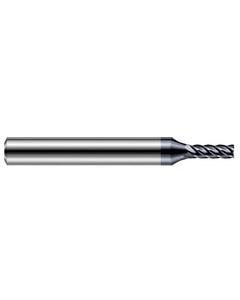

3/16″ Cutting Dia. × 1/4″ Shank Size × 9/16″ LOC × 2-1/2″ OAL, 5 Flute, Carbide, AlTiN Nano, 0.06″ Corner Radius End Mill
Item #: GE90800712C6
Brand: Harvey Tool
Model #: 800712-C6
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| Applicable Material | | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Corner Radius (RE) | 0.06″ |
| Depth of Cut Maximum (APMX) | 9/16″ |
| Length Group | 3D |
| Overall Length (OAL) | 2-1/2″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | AlTiN Nano |
| Decimal Equivalent | 0.188″ |
| Flute Count (NOF) | 5 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees |
| Shank Size (SS) | 1/4″ |
| Shank Type | Round |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
| End Shape | Corner Radius |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 9/16″ |
| Single / Double End | Single End |
