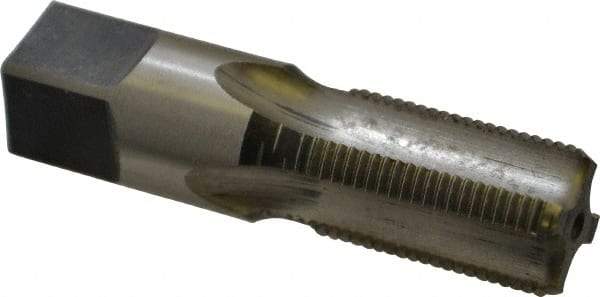

Reiff & Nestor - 3/8-19" BSPP, 4 Flutes, Bottoming Chamfer, Bright Finish, High Speed Steel British Standard Pipe Tap - 0.7" Shank Diam, 0.531" Square Size, 1-1/16" Thread Length, 2-9/16" Overall Length, Series 122P
Item #: 99751067
Brand: Reiff & Nestor
Model #: 47055
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Thread Size | 3/8-19 |
| Thread Standard | BSPP |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Overall Length (Inch) | 2-9/16 |
| Thread Length (Inch) | 1-1/16 |
| Shank Diameter (Decimal Inch) | 0.7000 |
| Square Length (Inch) | 1/2 |
| Square Size (Decimal Inch) | 0.5310 |
| Hook | Regular |
| Series/List | 122P |
