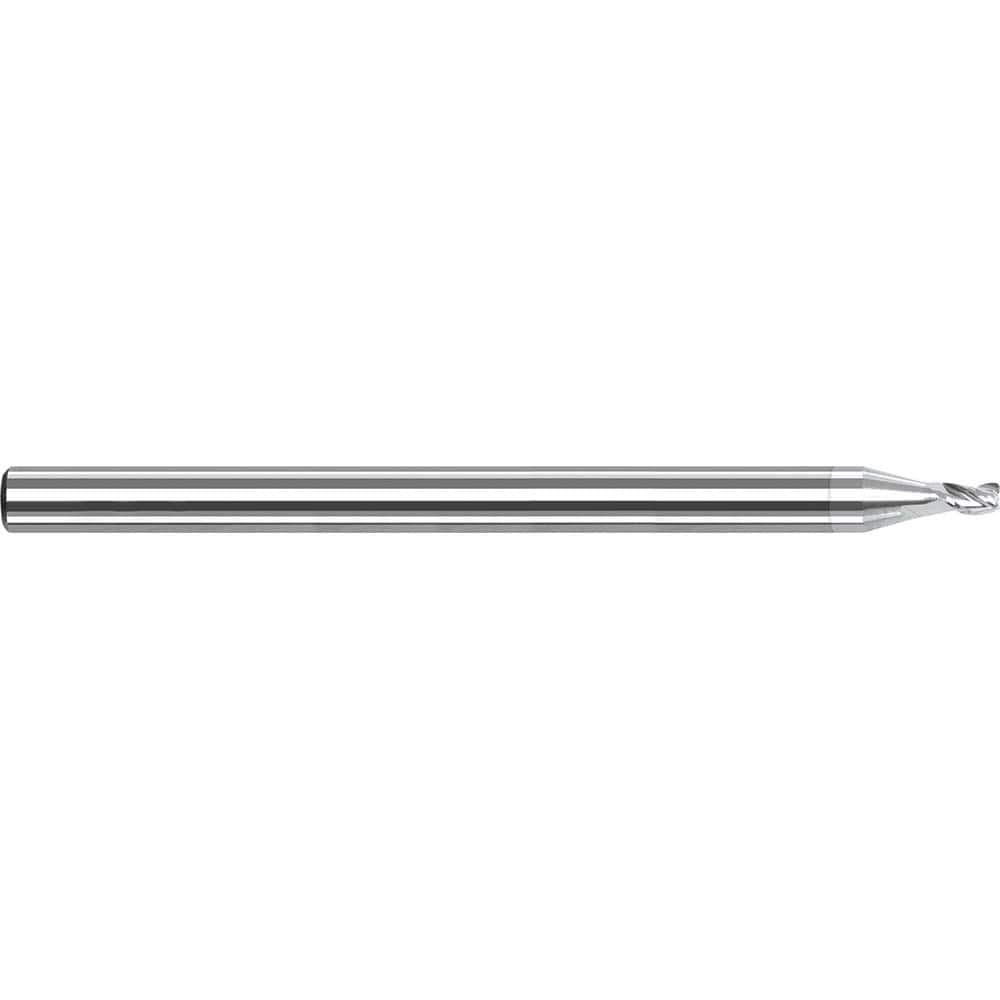

Harvey Tool - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 1.40 ; Mill Diameter (Decimal Inch): 0.0550 ; End Type: Corner Radius ; Corner Radius (Inch): 1/64 ; Corner Radius (Decimal Inch): 0.0150 ; Number of Flutes: 3
Item #: 99742231
Brand: Harvey Tool
Model #: 56510-C8
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 1.40 ; Mill Diameter (Decimal Inch): 0.0550 ; End Type: Corner Radius ; Corner Radius (Inch): 1/64 ; Corner Radius (Decimal Inch): 0.0150 ; Number of Flutes: 3
| Mill Diameter (mm) | 1.40 |
| Mill Diameter (Decimal Inch) | 0.0550 |
| End Type | Corner Radius |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | TiB2 |
| Length of Cut (Decimal Inch) | 0.0650 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 35 |
| Variable Helix | No |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | Dovetail Cutters - O-Ring Slotting End Mills |
