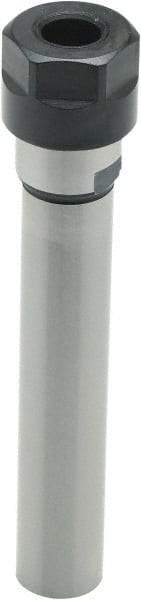

Parlec - 0.5mm to 10mm Capacity, 0.45" Projection, Straight Shank, ER16 Collet Chuck - 6.75" OAL, 3/4" Shank Diam
Item #: 99327090
Brand: Parlec
Model #: ER16-750-7H
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 3/4 |
| Projection (Decimal Inch) | 0.4500 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 6.7500 |
| Type | ER Collet |
| Shank Length (Decimal Inch) | 6.3000 |
| Nose Diameter (Decimal Inch) | 0.8500 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 0.8500 |
