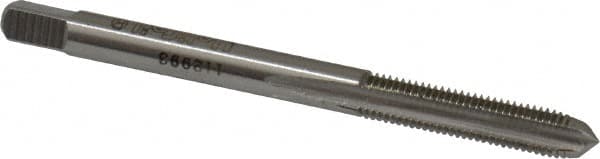

Heli-Coil - M3.5x0.60 Metric Coarse, D2, 3 Flute, Plug Chamfer, Bright Finish, High Speed Steel Hand STI Tap - 2-1/8" OAL, 19.05mm Thread Length, 6.35mm Square Length, 3.33mm Square Size, 5H Class of Fit
Item #: 99268112
Brand: Heli-Coil
Model #: 2087-3.5
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M3.5x0.60 |
| Class of Fit | 5H |
| Thread Limit | D2 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Finish/Coating | Bright |
| Overall Length (Inch) | 2-1/8 |
| Thread Standard | Metric Coarse |
| Thread Length (mm) | 19.05 |
| Shank Diameter (mm) | 4.27 |
| Square Length (mm) | 6.35 |
| Square Size (mm) | 3.33 |
| Material | High Speed Steel |
| Material Application | Aluminum; Magnesium; Mild Steel; Stainless Steel |
