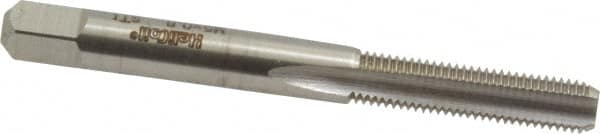

Heli-Coil - M5x0.80 Metric Coarse, D3, 3 Flute, Bottoming Chamfer, Bright Finish, High Speed Steel Hand STI Tap - 63.5mm OAL, 25.4mm Thread Length, 7.94mm Square Length, 4.85mm Square Size, 5H Class of Fit
Item #: 99171845
Brand: Heli-Coil
Model #: 2093-5
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M5x0.80 |
| Class of Fit | 5H |
| Thread Limit | D3 |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Finish/Coating | Bright |
| Overall Length (mm) | 63.50 |
| Thread Standard | Metric Coarse |
| Thread Length (mm) | 25.40 |
| Shank Diameter (mm) | 6.48 |
| Square Length (mm) | 7.94 |
| Square Size (mm) | 4.85 |
| Material | High Speed Steel |
| Material Application | Aluminum; Magnesium; Mild Steel; Stainless Steel |
