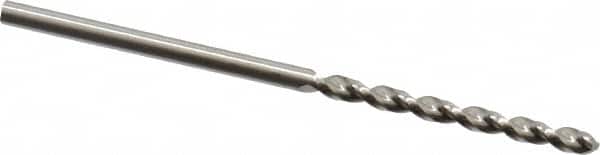

Guhring - 1.9mm 130° High Speed Steel Jobber Drill - Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 1-13/16" OAL, Standard Point
Item #: 99131740
Brand: Guhring
Model #: 9005490019000
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 1.90 |
| Drill Bit Size (Decimal Inch) | 0.0748 |
| Drill Point Angle | 130 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 55/64 |
| Flute Length (mm) | 22.00 |
| Overall Length (mm) | 46.00 |
| Overall Length (Decimal Inch) | 1.8125 |
| Overall Length (Inch) | 1-13/16 |
| Point Type | Standard |
| Shank Diameter (Decimal Inch) | 0.0748 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | -0.014 to 0.000 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 338 |
| Series/List | 549 |
