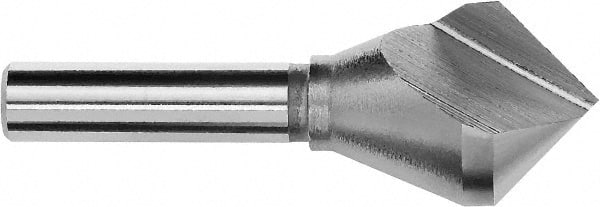

Magafor - 12mm Head Diam, 5/16" Shank Diam, 82° Cobalt Countersink
Item #: 12784724
Brand: Magafor
Model #: 84424120000
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
| Product Specifications | |
|---|---|
| Head Diameter (mm) | 12.00 |
| Head Diameter (Decimal Inch) | 0.4720 |
| Included Angle | 82 |
| Countersink Material | Cobalt |
| Minimum Cutting Diameter (Inch) | 5/64 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Shank Diameter (Inch) | 5/16 |
| Maximum Cutting Diameter (Inch) | 15/32 |
| Overall Length (Decimal Inch) | 2.1250 |
| Countersink Application | Chamfering |
| Maximum Hole Diameter (Decimal Inch) | 0.4720 |
| End Type | Single |
| Shank Type | Straight |
| Cutting Direction | Right Hand |
| Maximum Cutting Diameter (Decimal Inch) | 0.4720 |
| PSC Code | 5133 |
