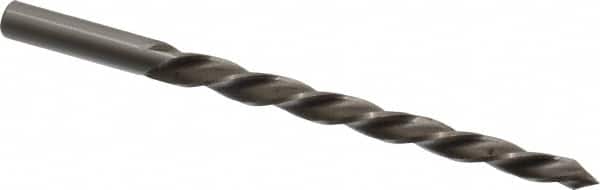

Interstate - #6 Pin, 0.354" Diam, 0.2773" Small End, 23/64" Diam Straight Shank, 3-11/16" Flute, Taper Pin Reamer
Item #: 02403061
Brand: Interstate
Model #:
Features and Benefits
Helical flute reamers are used for reaming taper pin holes in blind and through-hole operations. These flutes are designed with a high spiral construction for reduced chip packing.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #6 |
| Small End Diameter (Decimal Inch) | 0.2773 |
| Reamer Diameter (Decimal Inch) | 0.3540 |
| Flute Type | Helical |
| Shank Type | Straight |
| Overall Length (Inch) | 5-7/16 |
| Flute Length (Inch) | 3-11/16 |
| Shank Diameter (Inch) | 23/64 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
