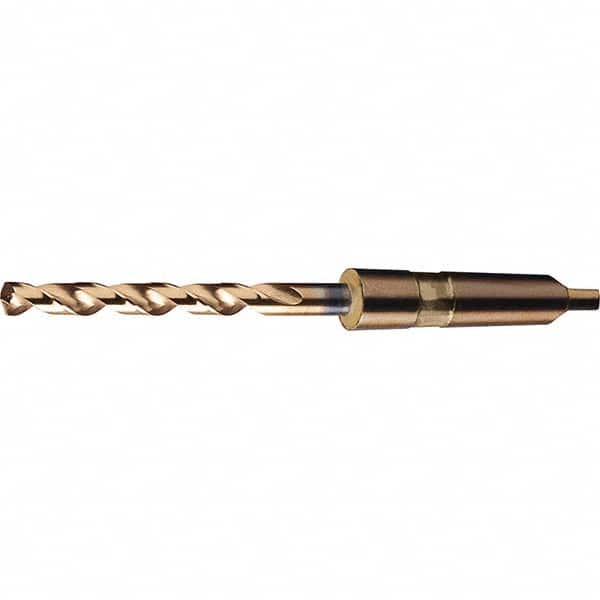

Chicago-Latrobe - 11/16", 3MT 135° Point Cobalt Taper Shank Drill Bit
Item #: 43137801
Brand: Chicago-Latrobe
Model #: 53044
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide gold finish provides a polished finish and prevents chip building, galling and welding on a workpiece. It is commonly used on low carbon, stainless steel and ferrous metals.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 11/16 |
| Drill Bit Size (Decimal Inch) | 0.6875 |
| Drill Point Angle | 135 |
| Shank Taper Designation | 3MT |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Oxide/Gold |
| Flute Type | Spiral |
| Overall Length (Inch) | 10 |
| Through Coolant | No |
| Flute Length (Inch) | 5-3/8 |
| Spiral Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Notched |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0012 |
| Material Grade | M42 |
| Specification Designation | ANSI |
| Series/List | 510 |
