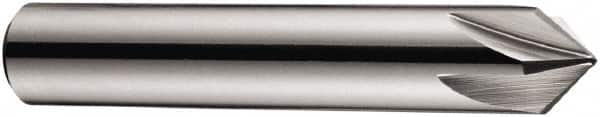

DORMER - 8mm Head Diam, 8mm Shank Diam, 5 Flute 90° High Speed Steel Countersink
Item #: 65671745
Brand: DORMER
Model #: 0108291
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Head Diameter (mm) | 8.00 |
| Head Diameter (Decimal Inch) | 0.3152 |
| Number of Flutes | 5 |
| Included Angle | 90 |
| Countersink Material | High Speed Steel |
| Countersink Finish/Coating | Bright |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3152 |
| Overall Length (mm) | 48 |
| Overall Length (Decimal Inch) | 1.8912 |
| Countersink Application | Countersinking |
| End Type | Single |
| Shank Type | Straight |
| Includes Pilot | No |
| Countersink Head Only | No |
| Cutting Direction | Right Hand |
| PSC Code | 5133 |
| Material Application | Alloy Steel; Bronze; Carbon Steel; Cast Iron; Hardened Steel; Nickel Alloy; Plastics; Stainless Steel; Titanium Alloy |
