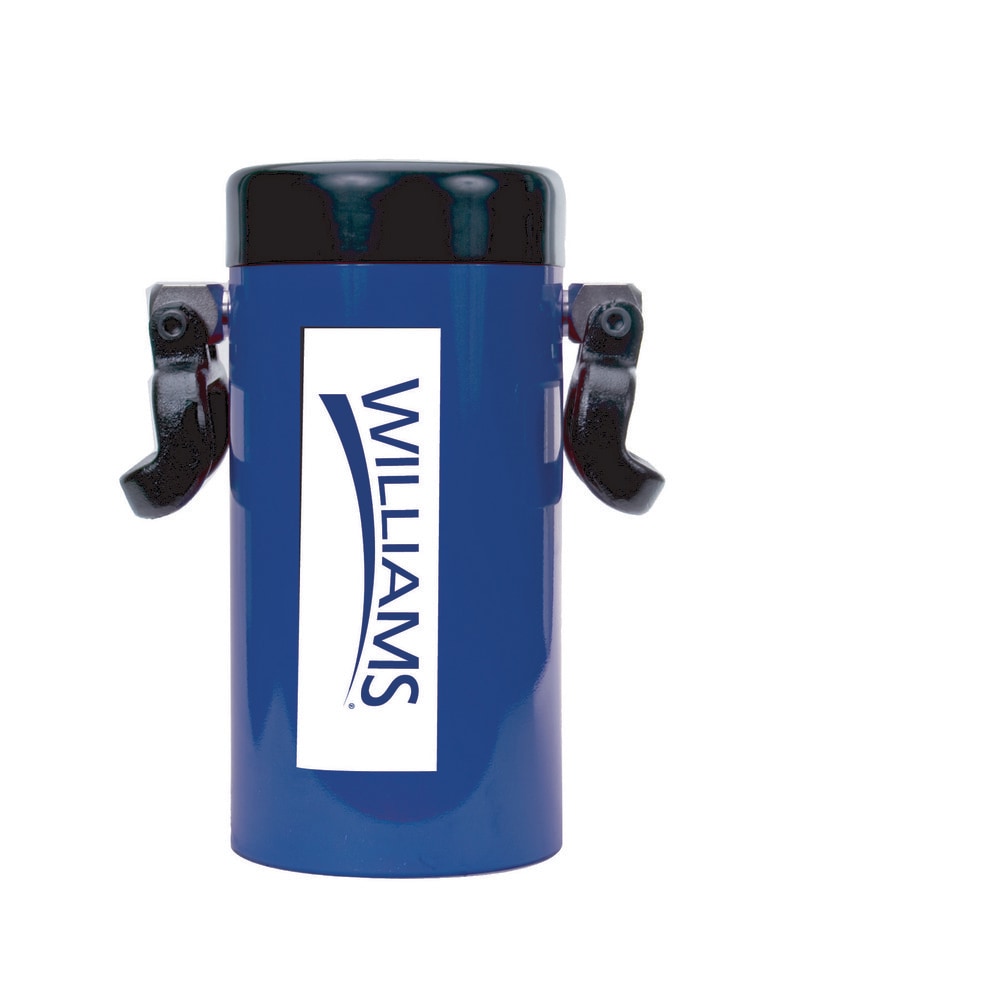

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 15 TON; Stroke Length: .99; Piston Stroke (Decimal Inch): .9900; Oil Capacity: 3.11; Cylinder Effective Area: 3.14; Lowered Height: 4.88
Item #: 54375746
Brand: Williams
Model #: 6C15T01
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 15 TON |
| Stroke Length | .99 |
| Piston Stroke (Decimal Inch) | .9900 |
| Oil Capacity | 3.11 |
| Cylinder Effective Area | 3.14 |
| Lowered Height | 4.88 |
| Retracted Length | 4.88 |
| Extended Length | 5.87 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 2.75 |
| Rod Diameter | 2.00 |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .72 |
| Saddle Diameter | 2.95 |
| Y Center Hole Diameter | 2.00 |
| Maximum Height (Inch) | 5.87 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
