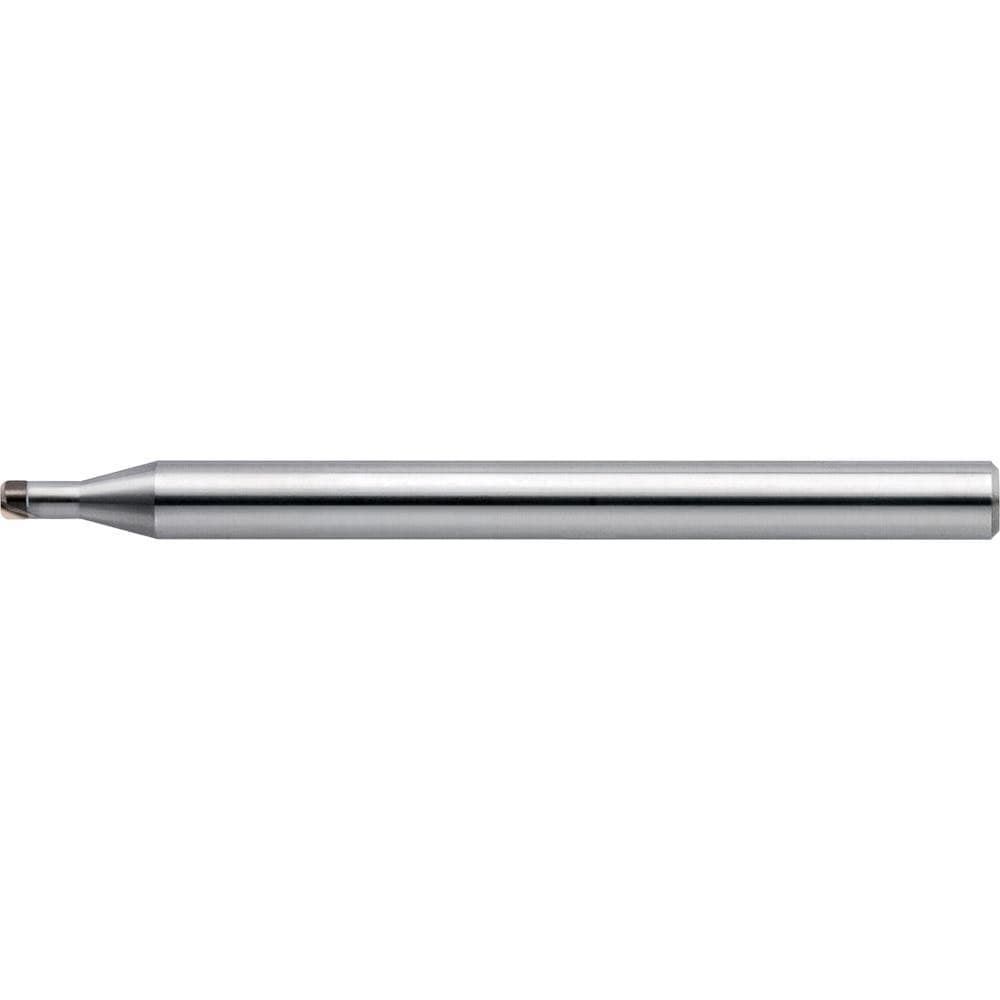

Corner Radius End Mill: 3.00 mm Dia, 0.70 mm LOC, 0 deg Helix, CBN Coated, Corner Radius End, Centercutting Series CBN-LBFRRF
Item #: 55115752
Brand: US Union Tool
Model #: 2793140
Product Specifications
| Mill Diameter (mm) | 3.00 |
| Number Of Flutes | 2 |
| Length of Cut (mm) | 0.70 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | CBN |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.10 |
| Overall Length (mm) | 50.00 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Length Type | Long |
| Extended Reach | No |
| Shank Diameter (mm) | 6.00 |
| Mill Diameter Tolerance | -0.008 |
| Shank Diameter Tolerance | -0.004 |
| UNSPSC Code | 27112803 |
| Material Grade | Super MG |
| Series | CBN-LBFRRF |
| Mill Diameter (mm) | 3.00 |
| Number Of Flutes | 2 |
| Length of Cut (mm) | 0.70 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | CBN |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.10 |
| Overall Length (mm) | 50.00 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Length Type | Long |
| Extended Reach | No |
| Shank Diameter (mm) | 6.00 |
| Mill Diameter Tolerance | -0.008 |
| Shank Diameter Tolerance | -0.004 |
| UNSPSC Code | 27112803 |
| Material Grade | Super MG |
| Series | CBN-LBFRRF |
| MSC Part # | 55115752 |
| Mfr Part # | 2793140 |
| Country of Origin Country of Origin is subject to change | Japan |
