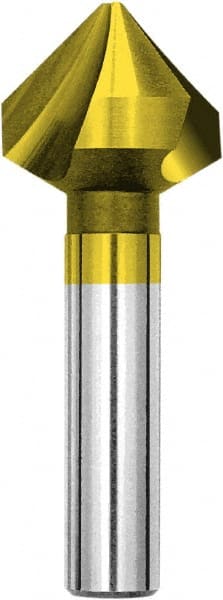

Magafor - 11.5mm Head Diam, 0.315" Shank Diam, 3 Flute 90° Cobalt Countersink
Item #: 31285349
Brand: Magafor
Model #: 84483111500
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Head Diameter (mm) | 11.50 |
| Head Diameter (Decimal Inch) | 0.4530 |
| Number of Flutes | 3 |
| Included Angle | 90 |
| Countersink Material | Cobalt |
| Countersink Finish/Coating | TiN |
| Minimum Cutting Diameter (Inch) | 0.0980 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Maximum Cutting Diameter (Inch) | 0.4530 |
| Overall Length (Inch) | 2-1/4 |
| Minimum Hole Diameter (Decimal Inch) | 0.0980 |
| Maximum Hole Diameter (Decimal Inch) | 0.4530 |
| End Type | Single |
| Shank Type | Straight |
| Shank Material | Cobalt |
| Includes Pilot | No |
| Countersink Head Only | No |
| Attachment Method | Shank |
| Cutting Direction | Right Hand |
| Maximum Cutting Diameter (Decimal Inch) | 0.4530 |
| PSC Code | 5133 |
