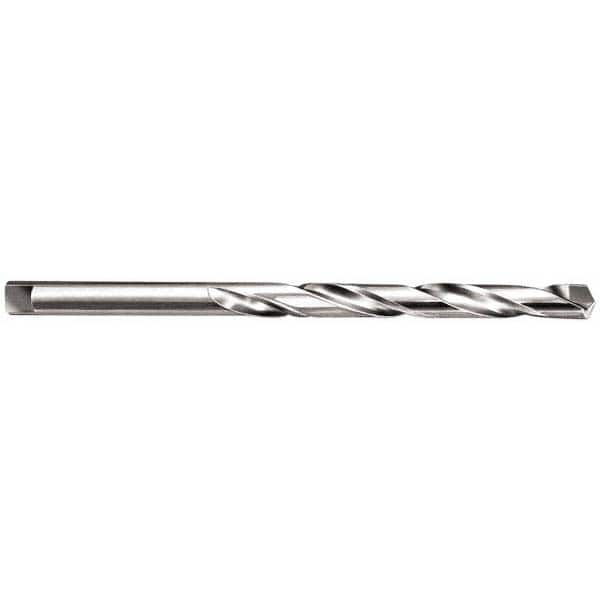

Made in USA - 29/32" 118° Spiral Flute Carbide-Tipped Taper Length Drill Bit
Item #: 01460583
Brand: Made in USA
Model #:
Features and Benefits
Carbide tips cuts faster than high speed steel. It is commonly used on ferrous and nonferrous metals including cast iron, steel and steel alloy.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 29/32 |
| Drill Bit Size (Decimal Inch) | 0.9062 |
| Drill Point Angle | 118 |
| Drill Bit Material | Carbide-Tipped |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Tanged |
| Through Coolant | No |
| Point Type | Standard |
| Flute Length (Inch) | 6-1/8 |
| Overall Length (Inch) | 10 |
| Spiral Type | Regular Spiral |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0012 |
| Web Thinning | Web-Thinned |
| Series/List | 2630 |
