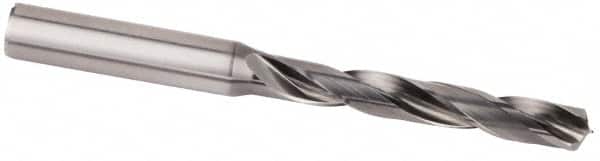

Kennametal - 17.5mm 135° Spiral Flute Solid Carbide Taper Length Drill Bit
Item #: 58473893
Brand: Kennametal
Model #: 4052902
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Multilayer Aluminum Chromium (AlCr) is a blended coating for high performance applications. It is extremely heat and wear resistant and used in cast iron applications due to its high hot hardness.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 17.50 |
| Drill Bit Size (Decimal Inch) | 0.6890 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Multilayer AlCr |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Point Type | Standard |
| Flute Length (Decimal Inch) | 5.3150 |
| Flute Length (mm) | 135.00 |
| Overall Length (mm) | 185.00 |
| Overall Length (Decimal Inch) | 7.2835 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 18.00 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Flute Length x Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 113.00 |
| Maximum Drilling Depth (Decimal Inch) | 4.4488 |
| Shank Length (mm) | 48 |
| Shank Length (Decimal Inch) | 1.8898 |
| Drill Point Length (mm) | 4.35 |
| Drill Point Length (Decimal Inch) | 0.1712 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.007 to +0.025 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0003 to +0.0010 |
| Specification Number | DIN 6535 |
| Material Grade | KCK10 |
| Series/List | B256A-YPC |
