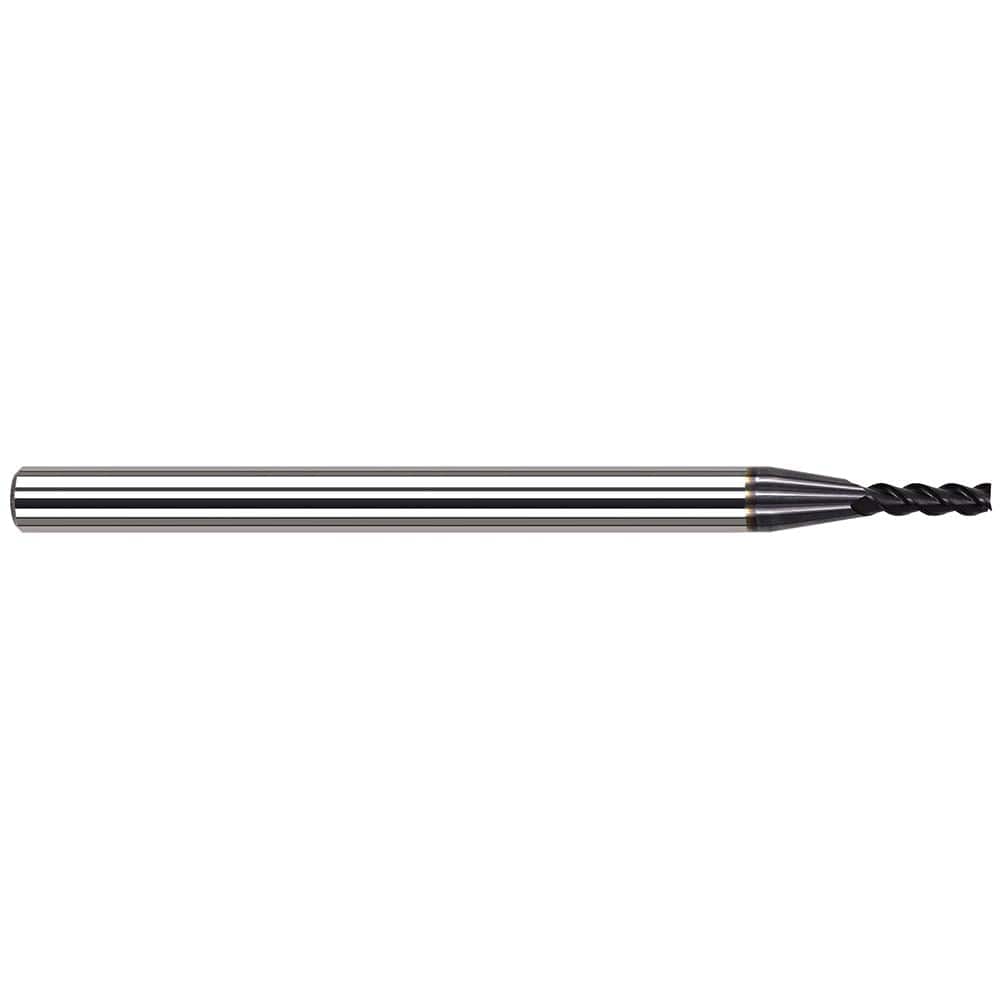

Harvey Tool - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 3/32 ; Mill Diameter (Decimal Inch): 0.0930 ; End Type: Corner Radius ; Corner Radius (Inch): 1/64 ; Corner Radius (Decimal Inch): 0.0150 ; Number of Flutes: 3
Item #: 98972631
Brand: Harvey Tool
Model #: 964193-C6
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 3/32 ; Mill Diameter (Decimal Inch): 0.0930 ; End Type: Corner Radius ; Corner Radius (Inch): 1/64 ; Corner Radius (Decimal Inch): 0.0150 ; Number of Flutes: 3
| Mill Diameter (Inch) | 3/32 |
| Mill Diameter (Decimal Inch) | 0.0930 |
| End Type | Corner Radius |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN Nano |
| Length of Cut (Decimal Inch) | 0.2790 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 34 |
| Variable Helix | Yes |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | Variable Helix End Mills for High Temp Alloys - Corner Radius |
