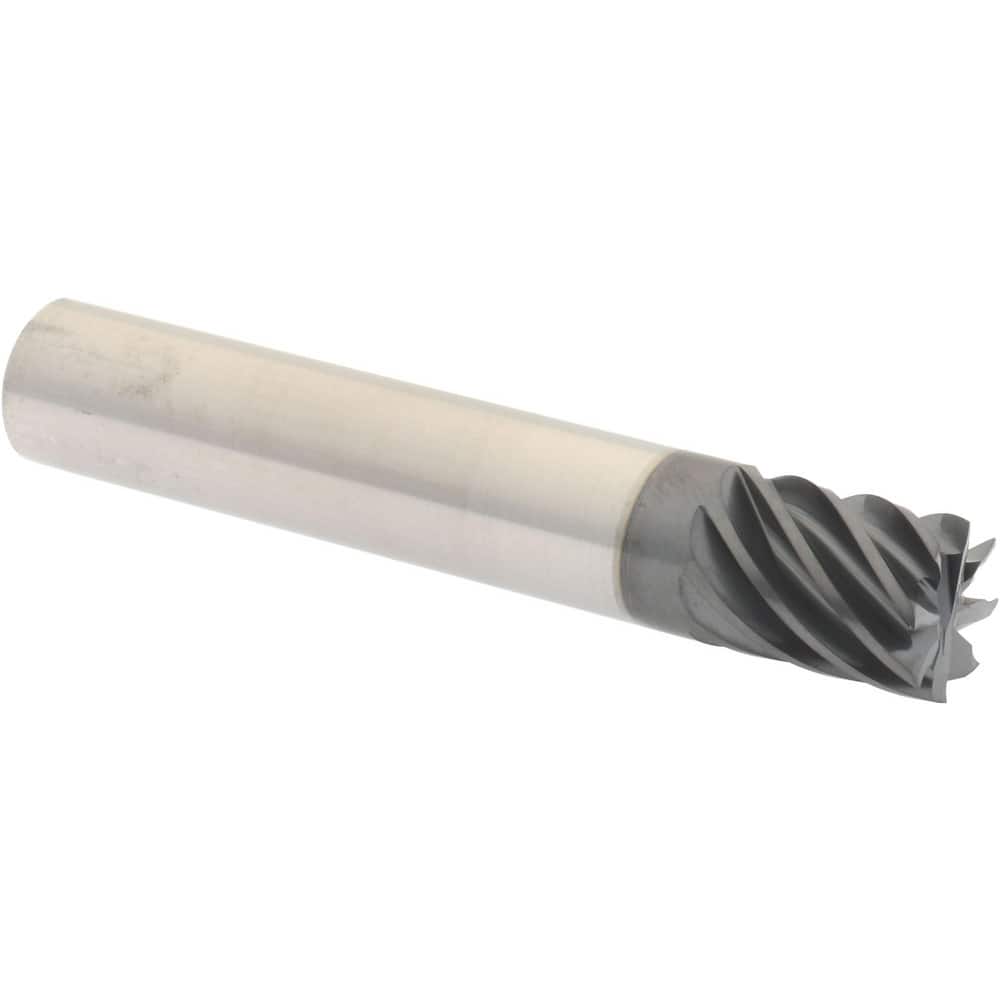

Square End Mill: 1/2'' Dia, 5/8'' LOC, 1/2'' Shank Dia, 3'' OAL, 8 Flutes, Solid Carbide Single End, AlTiCrN Finish, Spiral Flute, 40 ° Helix, Centercutting, RH Cut, RH Flute, Series HS
Item #: 98963382
Brand: Accupro
Model #: 6504097
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 8 |
| Length of Cut (Inch) | 5/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/2 |
| Finish/Coating | AlTiCrN |
| Overall Length (Inch) | 3 |
| Helix Angle | 40 |
| Chipbreaker | No |
| Variable Helix | No |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.6000 - 0.7000 |
| Length of Cut (Decimal Inch) | 0.6250 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 3.0000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Mill Diameter Tolerance | +0.00 to -0.05 mm; +0.000 to -0.002 in |
| Series | HS |
